SSN1SXCSA 03030DKF SXCSA Board(Without Extension Host) OSN3500

China SSN1SXCSA 03030DKF SXCSA Board(Without Extension Host) OSN3500 supplier
SSN1SXCSA 03030DKF SXCSA Board(Without Extension Host) OSN3500 supplier SSN1SXCSA 03030DKF SXCSA Board(Without Extension Host) OSN3500 supplier

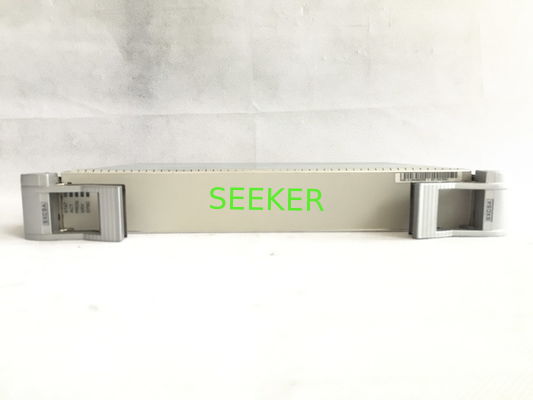

Large Image :  SSN1SXCSA 03030DKF SXCSA Board(Without Extension Host) OSN3500

Product Details:

Place of Origin: China
Brand Name: HUAWEI
Model Number: SSN1SXCSA 03030DKF

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $200-$2500
Packaging Details: Carton packaging
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Product Name: SSN1SXCSA Part No: 03030DKF
Operator Temperature: -30 To 65 Dimensions(mm): 40.0 (W) X 235.2 (D) X 261.4 (H)
Weight(kg): 2.2


Huawei OSN3500 Super Cross-connect and Synchronous Timing Board(Without Extension Host).

Higher order cross-connect capacity: 200 Gbit/s.

Lower order cross-connect capacity: 20 Gbit/s.

Access capacity: 155 Gbit/s.

Supports the SNCP protection at the VC-4-4c, VC-4-8c, VC-4-16c, VC-4-64c, VC-4, VC-12, VC-3, and AU-3 levels.

Supports VC-4-4c, VC-4-8c, VC-4-16c, and VC-4-64c concatenation services.

Supports a maximum of 40 linear MSP protection groups.

Supports a maximum of 12 ring MSP protection groups.

Supports the standard system synchronization clock.

Supports the real-time clock (RTC).

Supports the processing of the S1 byte to realize the clock protection switching.

Supports the extraction, insertion, and management of the SSM and clock ID.

Supports the 1+1 Hot Backup for the Cross-Connect and Timing Units protection schemes.


SXCSA is a Super Cross-Connect board for Huawei OSN3500, provide 200G High order, 20G Low order Cross-Connect capacity and 155G Access capacity. SXCSA have N1 and ND0 version, respectively part number is 03030DFK and 03030KBM.

Tech Specs

Front Panel

The front panel of the SSN1SXCSA has indicators and a bar code.

Valid Slot
OSN 3500: The SSN1SXCSA can be installed in slots 9 and 10 in the subrack.
Mechanical Specifications
Dimensions (mm) 40.0 (W) x 235.2 (D) x 261.4 (H)
Weight(kg) 2.2



Q: Can I use only one SXCSA board in OSN3500?

A: Yes, you can, but that highly not recommended.


Q: Can I use SXCSA together with other cross-connect board, such as UXCSA, IXCSA?

A: No, you can't, two Cross-connect boards should be the same type of board.


Q: What's the cross-connected capacity of SXCSA?


  Higher order cross-connect capacity(Gbit/s) Lower order cross-connect capacity(Gbit/s) Access capacity(Gbit/s)
GXCSA 40 5 35
UXCSA 80 20 58.75
SXCSA 200 20 155
IXCSA 200 40 155
PSXCSA 200 20 155


Q: The board is new or refurbished?

A: Yes, it is original new, not been used.


Q: Can I return/exchange board if not compatible with my system?

A: Yes, please tell our sales team your system and main control board version, before your purchase.


Q: What is the lead time for SSN1SXCSA board?

A: In normal condition is 5 days, better to confirm with our sales team before your purchase.
