Place of Origin:

JAPAN

Brand Name:

NEC

Certification:

ISO90001

Model Number:

iPASOLINK IAP/IAG3

Minimum Order Quantity:

Price:

$500-$2500

Packaging Details:

standard packing

Delivery Time:

3 months

Payment Terms:

T/T

Supply Ability:

1000

Product Name:	ODU	Frequency:	6 To 23 GHz Band
Condition:	New	Warranty:	12 Months

Product Name:

ODU

Frequency:

6 To 23 GHz Band

Condition:

New

Warranty:

12 Months

Compact & More Advanced Performance

NEC iPASOLINK™ ODU is renowned for their reliability and is trusted to provide market leading transmission performance for all ecologically minded operators in the broadest range of environmental conditions across the planet.

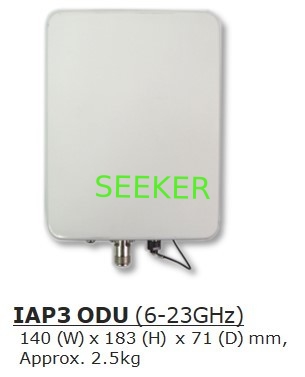

The new IAP3 series ODU inherits the quality and performance of the previous IAG/IAP series, and has significantly more transmit power at higher modulation, much smaller/lighter and more energy efficient units than the previous models.

iPASOLINK IAP/IAG3 series compatible: 6 to 23 GHz band
Extraordinary high transmit power at high modulation
Smallest and lightest body for easy installation
Supports 112MHz channel bandwidth
Wider modulation range: QPSK to 4096 QAM
Power saving mode with ATPC function
XPIC(CCDP) system supported

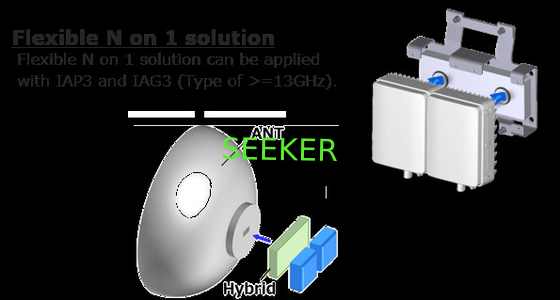

Flexible Non1 solution

IAP3 ODU not only has the easy-to-install and environmentally friendly, but also allows expanding the multiple channels to be built in any combination.
This new Flexible N on 1 solution can meet a variety of customer needs.

Flexibility in multi channels and combine band selection
Easy to upgrade RF channels in the future
Easy replacement in case of single channel failure
Reusable of ODUs through relocation

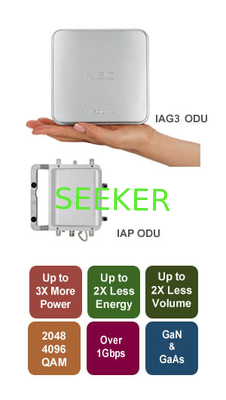

Advanced Grade ODU / Type IAG3, IAP

IAG3 and IAP Series ODUs are masterpieces of quality and performance in units much smaller, lighter and energy efficient than ever before, featuring:

GaAs and GaN Monolithic Microwave Integrated Circuit technology for excellent transmission performance with up to 3x the power efficiency
(on IAP GaN model)
Smallest footprint and power consumption in their class
(IAG3 model features NEC’s Automatic Transmitter Power Control)
NEC’s ultra-compact surface mount and multilayer PCB technology
New wider modulation range
(QPSK to 4096QAM)
More urban deployment flexibility and more environmentally friendly.

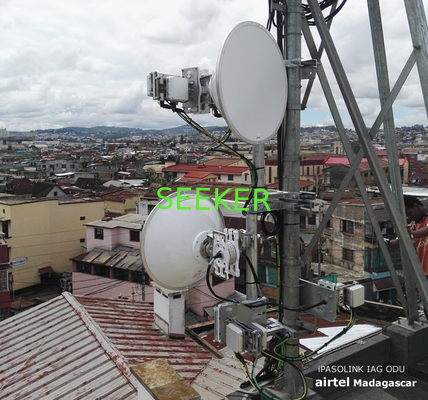

Case of "Airtel Madagascar"

Features of IAG3/IAP ODU Series

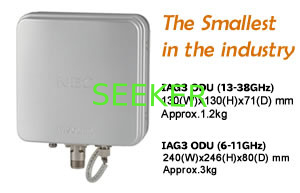

Type IAG3 ODU

"IAG3" ODU is designed to be easy to install and ecological.

iPASOLINK IAG/IAG2 Series compatible: 6 to 38 GHz Band
The smallest and lightest weight body for easy install
High TX power capability(Optional) with advanced linearization technology
Wider Modulation range (QPSK to 4096 QAM)
Channel Bandwidth up to 112MHz
Power saving mode with ATPC function
XPIC (CCDP) system supported

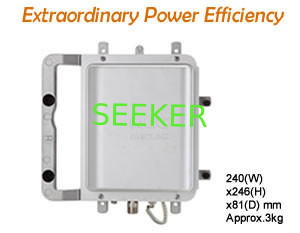

Type IAP ODU

“IAP” ODU is designed for 3x the power

iPASOLINK Series compatible: 6 to 26 GHz Band
GaN technology giving 3x the transmission power of previous models
(NHP ODU) at the same footprint
Wider Modulation range (QPSK to 4096QAM)
Channel bandwidth up to 112MHz
XPIC(CCDP) system supported

NEC ODU iPASOLINK IAP/IAG3 series compatible: 6 to 23 GHz band
