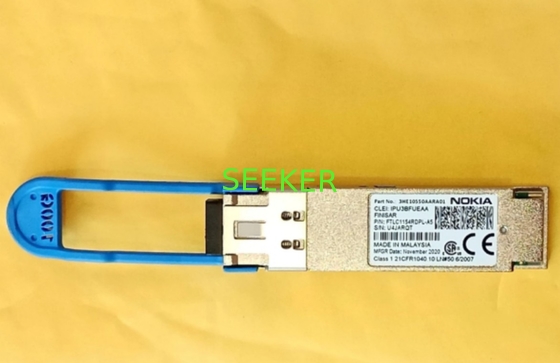

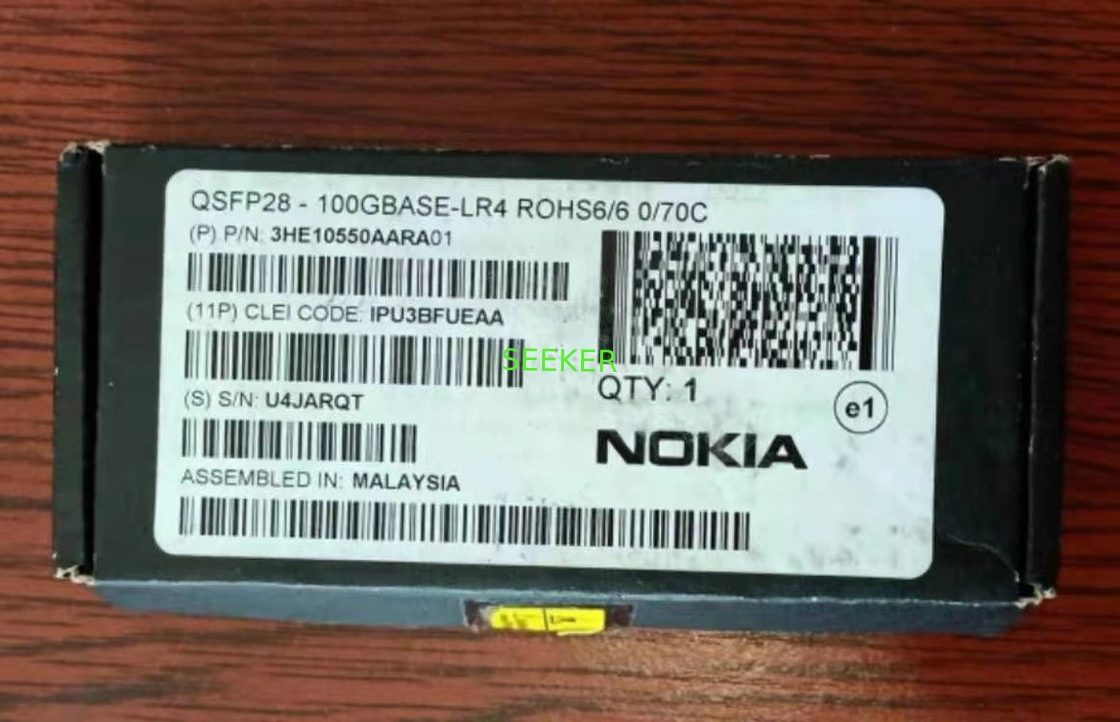

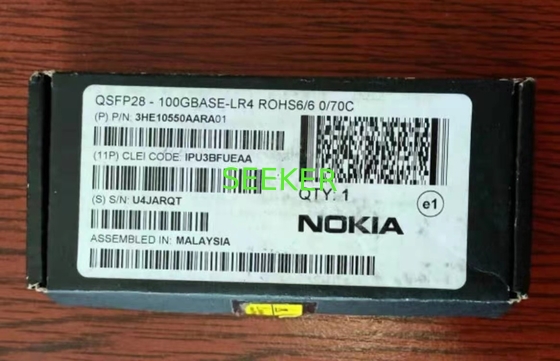

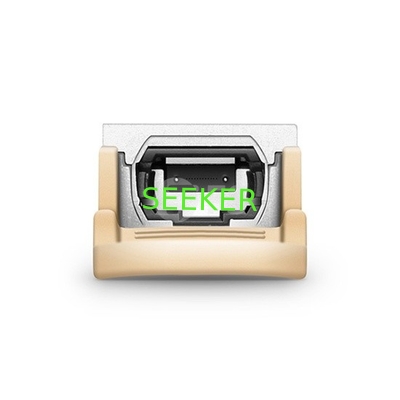

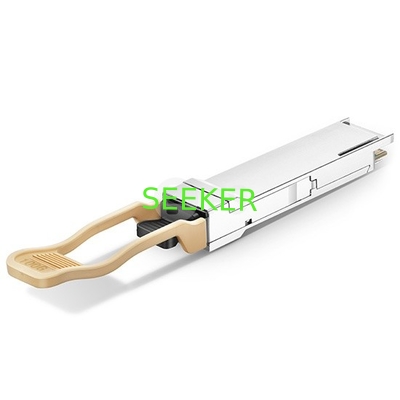

Nokia (Alcatel-Lucent) 3HE10550AA 100G QSFP28 Transceiver 1310nm 10 km Duplex LC

Large Image : Nokia (Alcatel-Lucent) 3HE10550AA 100G QSFP28 Transceiver 1310nm 10 km Duplex LC

Product Details:

Place of Origin:	China
Brand Name:	NOKIA
Certification:	RoHs
Model Number:	3HE10550AA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$200-$2500
Packaging Details:	Stand packing
Delivery Time:	5 working days
Payment Terms:	T/T
Supply Ability:	3000

Contact Now

Detailed Product Description

FORM FACTOR:	QSFP28	CONNECTOR:	LC Duplex
BANDWIDTH TO:	103.12 Gbit/s	LASER:	DFB

FORM FACTOR	QSFP28	BANDWIDTH FROM	25.78 Gbit/s
CONNECTOR	LC Duplex	BANDWIDTH TO	103.12 Gbit/s
INTERFACE	Singlemode	LASER	DFB
WAVELENGTH TX	int. Mux 1296-1309 nm	RECEIVER TYPE	PIN
WAVELENGTH RX	int. Mux 1296-1309 nm	WAVELENGTH TX MIN.	1294.53nm
DISTANCE	10 km	WAVELENGTH TX MAX.	1296.59nm
POWERBUDGET (DB)	4.3 dB	WAVELENGTH RX MIN.	1294.56nm
TRANSMIT MIN.	-4.3 dBm	WAVELENGTH RX MAX.	1310.19nm
RECEIVE MIN.	-8.6 dBm	TEMPERATURE RANGE	0? - 70?
TRANSMIT MAX.	4.5 dBm	DIGITAL DIAGNOSTIC MANAGEMENT (DDM)	internally calibrated
RECEIVE MAX. (RECEIVER OVERLOAD)	4.5 dBm	TYPE	LR4
PART NUMBER	QSFP28-100G-LR	EXTINCTION RATIO	4 dB
PROTOCOLS	100G Ethernet
