OptiX RTN 905 Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and h

China OptiX RTN 905 Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and h supplier
OptiX RTN 905 Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and h supplier OptiX RTN 905 Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and h supplier OptiX RTN 905 Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and h supplier OptiX RTN 905 Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and h supplier OptiX RTN 905 Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and h supplier OptiX RTN 905 Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and h supplier OptiX RTN 905 Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and h supplier OptiX RTN 905 Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and h supplier

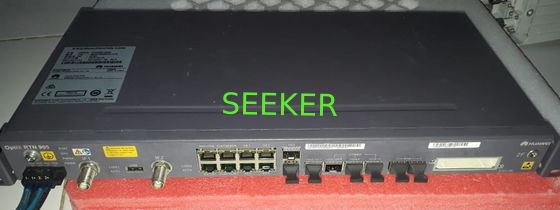

Large Image :  OptiX RTN 905 Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and h

Product Details:

Place of Origin: China
Brand Name: HUAWEI
Model Number: OptiX RTN 905

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $200-$2500
Packaging Details: Carton packaging
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10
Detailed Product Description
Model Number: RTN 905 Warranty:: 12 Months
Key Feature:: Sync. Ethernet, PLA/EPLA, Anti-theft 1+1, XPIC, AM IDU Dimensions:: 442 Mm * 220 Mm * 44 Mm
IDU Weight:: 2.75 Kg Power:: -38.4V To -57.6V

The OptiX RTN 905  is a new generation integrated microwave transmission system devel- oped by Huawei, which can be installed easily and configured flexibly. It supports two radio links, and supports multiple protection schemes. The OptiX RTN 905 2F provides a generic platform for TDM/Hybrid/Packet/Routing microwave transmission. The platform provide various service interfaces, large bandwidth, and easy scalability. It provides a seamless microwave transmission solution for mobile communication network or private networks.

OptiX RTN 905 Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and h



This section describes main highlights of OptiX RTN 905 V100R011C00.

  • 10GE port

    The OptiX RTN 905 2F provides a maximum of four 10GE ports, with each port providing 10 Gbit/s bandwidth. Therefore, multiple GE ports do not need to be used to configure LAG for load sharing. This reduces deployment costs, simplifies installation, and meets upstream capacity requirements raised by an increasing number of access sites.

  • High density and Ultra-High-Order modulation 8192QAM

    • Is a 1 U standard chassis and provides up to 4x10GE, 6xGE, 2xSTM-1, and 16xE1 ports.
    • The OptiX RTN 905  supports 112 MHz channel bandwidth. Compared with the traditional 56 MHz channel bandwidth, the 112 MHz channel bandwidth doubles the service capacity of a single channel, reducing CAPEX in building networks.
    • Supports the 8192QAM modulation scheme.
  • On-demand application and flexible expansion

    • Provides OptiX RTN 905 1E with one IF board and OptiX RTN 905 2E/2F with two IF boards.
    • Provides more microwave link directions or implements more functions by NE cascading.
Specifiction



Item

Description

Type

IDU 905 1E

IDU 905 2E

IDU 905 2F

Chassis height 1U
Extended subcard Supported
Service interface
  • 4 x GE electronic interface
  • 4 x GE/FE optical interface or GE electrical interface (SFP)b
  • 2 x 2.5GE optical interface (SFP+/SFP)c
  • 16 x E1 interface
  • 1 x multifunction cascading interfacea, b
  • 1 x E1 services cascading interfaceb
  • 2 x STM-1 interface
NOTE:

a: IDU 905 1Es can be cascaded through multifunction cascading interfaces to implement 1+1/XPIC/PLA/EPLA function, or transmit E1 services. IDU 905 2Es can be cascaded through multifunction cascading interfaces to implement EPLA function, or transmit E1 services.

b: Two of GE interfaces (SFP) and two cascading ports share same physical ports (combo ports). When cascading is not used, the two combo ports can be set as GE ports.

c: Both port GE5 and port GE6 support 2.5GE optical modules. If either port GE5 or GE6 needs a 2.5GE optical module, insert 2.5GE optical modules into both ports.

  • 2 x 10GE optical interface (SFP+)a
  • 2 x 10GE/2.5GE/GE/FE optical interface or GE electrical interface (SFP+/SFP)a
  • 2 x 2.5GE/GE/FE optical interface or GE electrical interface (SFP+/SFP)
  • 4 x GE electrical interface
  • 2 x STM-1 interface
  • 16 x E1 interface
Radio type
  • Integrated IP radio (E1 + Ethernet)
  • Integrated IP radio (STM-1 + Ethernet)
  • SDH radio
Highest modulation 2048QAM 8192QAM
Number of radio directions 1 2 2
RF configuration mode
  • 1+0
  • 1+1 HSB/FD/SD (NE cascading)
  • XPIC (NE cascading)
  • 2x(1+0)
  • 2+0
  • 1+1 HSB/FD/SD
  • Intra-board XPIC
  • 2x(1+0)
  • 2+0
  • 1+1 HSB/FD/SD
  • Intra-board XPIC
Packaging & Shipping

Packaging

1. All products will be packed in carton, so the product can get effective protection to avoid damage.

2. Packaging according to customer requirement.

Shipping

1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.

2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.

3. You can choose your own shipping agent, we will provide good cooperation for it.



Our Services

We can provide detail documents and remote help for device installation and configuration.

Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)

Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days,

returned goods must keep original state and it’s accessories are complete.
