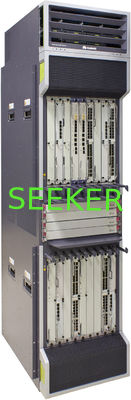

NE40E-X16A: | Chassis |
---|
Overview
Product Type |
Description |
BOM |
Model |
Earliest Software Version |
---|---|---|---|---|
NE40E-X16A DC | NE40E-X16A Integrated DC Chassis Components(Including 4 Fan Tray) | 02359914 | CR5B0BKP1673 | V800R006C20 |
NE40E-X16A AC | NE40E-X16A Integrated AC Chassis Components(Including 4 Fan Tray) | 02359915 | CR5B0BKP1674 | V800R006C20 |
NE40E-X16A HVDC | NE40E-X16A Integrated HVDC Chassis Components(Including 4 Fan Tray) | 02351CBD | CR5B0BKP1675 | V800R009C10 |
NE40E-X16A DC (2T) | NE40E-X16A Integrated DC Chassis Components(2T,Including 6 Fan Tray) | 02351PJP | CR5B0BKP1676 | V800R010C00 |
NE40E-X16A AC (2T) | NE40E-X16A Integrated AC Chassis Components(2T,Including 6 Fan Tray) | 02351PJQ | CR5B0BKP1677 | V800R010C00 |
NE40E-X16A HVDC (2T) | NE40E-X16A Integrated HVDC Chassis Components(2T,Including 6 Fan Tray) | 02351PJR | CR5B0BKP1678 | V800R010C00 |
1. Air intake frame (Air Filter) | 2. Mounting ear | 3. ESD jack (front) | 4. Air intake vent in the SFU area | 5. Handle |
6. Power module cover | 7. Power module (PM) | 8. Power monitoring module (PMU) | 9. Switch module | 10. MPU |
11. Cable tray | 12. Cable guide for switch and fabric units (SFUs) | 13. SFU | 14. LPU |
15. Power entry module (PEM)
NOTE:
An AC PEM is used as an example here. The DC PEM is also supported.
|
16. Fan Module | 17. Air filter | 18. Ground terminal | 19. Non-lifting handle | 20. ESD jack (rear) |
21. Noise Reduction Module
NOTE:
Using only the 2T chassis.
|
Slot Name |
Slot Quantity |
Slot ID |
Remarks |
---|---|---|---|
LPU | 16 | 1 to 16 | These slots hold LPUs. |
MPU | 2 | 17 to 18 | These slots hold MPUs. |
SFU | 4 | 19 to 22 | These slots hold SFUs. |
Item |
Specification |
---|---|
Dimensions (H x W x D) |
|
Weight (empty) |
|
Weight (full configuration) |
|
Cabinet installation standard |
|
Typical power consumption |
|
Typical heat dissipation |
|
DC input voltage |
|
AC input voltage |
|
HVDC input voltage |
|
MTBF | 22.33 years |
MTTR | 0.5 hours |
Availability | 0.9999974444 |
Slot quantity | 22 |
Redundant MPUs | 1:1 |
Redundant Switch fabrics | 3+1 |
Redundant fans |
|
Redundant power supply |
|
Forwarding performance | 5600 Mpps (LPUF-240) |
Switching capacity |
|
Operating temperature |
|
Storage temperature | –40°C to +70°C (–40°F to +158°F) |
Relative operating humidity |
|
Relative storage humidity | 5% to 95% RH, non-condensing |
Long-term operating altitude | <= 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the NEU100 must decrease by 1°C [33.8°F] for every 220 m [721.78 ft.].) |
Storage altitude | Less than 5000 m (16404 ft.) |
