H801SCUH 023JCH HW SmartAX MA5600T

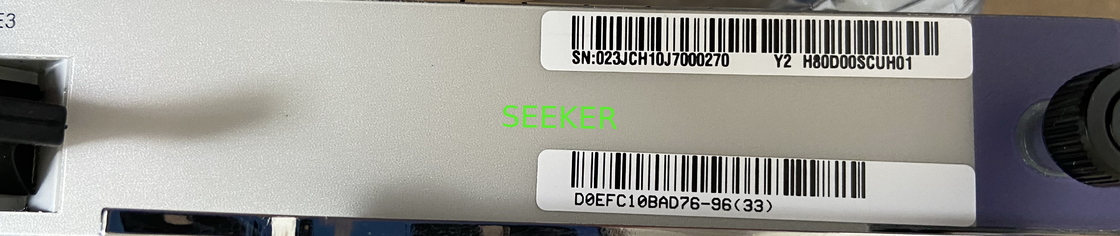

Large Image : H801SCUH 023JCH HW SmartAX MA5600T

Product Details:

Place of Origin:	China
Brand Name:	HW
Model Number:	023JCH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$200-$2500
Packaging Details:	Carton packaging
Payment Terms:	T/T
Supply Ability:	10

Contact Now

Detailed Product Description

SmartAX:	MA5600T

H801SCUH 023JCH HW SmartAX MA5600T

Overview

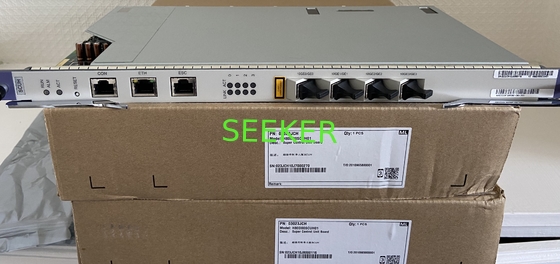

The H801SCUH board is an integrated optical-copper super control unit board. It is the core for system control and service switching and aggregation, and is used for MA5600T/MA5603T subracks.

Quick Spec

Table 1 shows the quick spec.

Model	H801SCUH

LAN switch	48 x10GE

Switching capacity	• 960 Gbit/s (active/standby mode)
	• 1920 Gbit/s (load sharing mode)

Bandwidth per slot	• 20	Gbit/s (active/standby mode)
	• 40	Gbit/s (load sharing mode)

MAC address table	131072

Access ONT	16384

Multicast user	16384

Product Details

H801SCUH provides these benefits:

Supports up to 1920 Gbit/s switching capacity

Supports active/standby mode and load sharing mode, doubling processing performance

Supports ISSU, saving the upgrade interruption time

Supports synchronization Ethernet

Supports 1588v2

H801SCUH provides these external interfaces:

· Management interfaces

CON (RJ-45): RS-232 serial port

ETH (RJ-45): 10/100/1000M Base-T maintenance network port

ESC (RJ-45): RS-485 monitoring serial port

· Communication Interfaces

- 10GE0/GE0 to 10GE3/GE3 (4 x SFP+ 10GE/GE ports): Used for upstream transmission or cascading

Compare to Similar Items

Table 2 shows the comparison.

Model	H801SCUH	H801SCUV

Description	an integrated optical-copper super control unit board	a super control unit board for optical access

LAN switch	48 x10GE	48 x10GE

Switching capacity	• 960 Gbit/s (active/standby mode)	• 960 Gbit/s (active/standby mode)
	• 1920 Gbit/s (load sharing mode)	• 1920 Gbit/s (load sharing mode)

Bandwidth per slot	• 20	Gbit/s (active/standby mode)	• 20	Gbit/s (active/standby mode)
	• 40	Gbit/s (load sharing mode)	• 40	Gbit/s (load sharing mode)

MAC address table	131072		131072

Access ONT	16384		16384

Get More Information

Do you have any question about the H801SCUH?

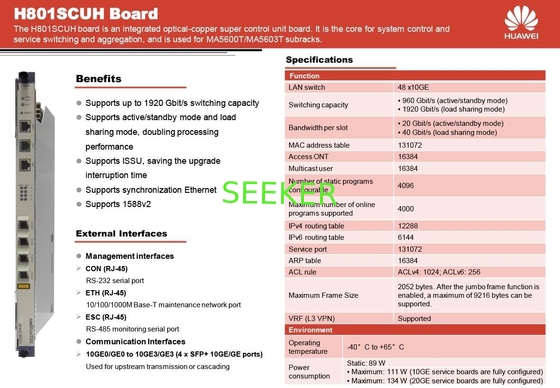

Specification

	H801SCUH Specification

LAN switch	48 x10GE

Switching capacity	• 960 Gbit/s (active/standby mode)
	• 1920 Gbit/s (load sharing mode)

Bandwidth per slot	• 20 Gbit/s (active/standby mode)
	• 40 Gbit/s (load sharing mode)

MAC address table	131072

Access ONT	16384

Multicast user	16384

Number of static programs	4096
configurable

Maximum number of online	4000
programs supported

IPv4 routing table	12288

IPv6 routing table	6144

Service port	131072

ARP table	16384

ACL rule	ACLv4: 1024; ACLv6: 256

Maximum Frame Size	2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported.

VRF (L3 VPN)	Supported

	Environment

Operating temperature	-40° C to +65° C

Power consumption	Static: 89 W

	• Maximum: 111 W (10GE service boards are fully configured)
	• Maximum: 134 W (20GE service boards are fully configured)
