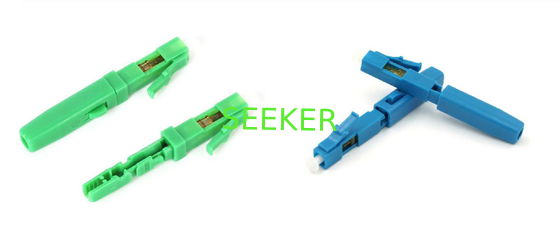

LCAPC/UPC-2.0/3.0mm

China LCAPC/UPC-2.0/3.0mm supplier

Large Image :  LCAPC/UPC-2.0/3.0mm

Product Details:

Place of Origin: China
Brand Name: SEEKER
Model Number: LCAPC/UPC-2.0/3.0mm SK-14

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: $
Packaging Details: Carton packaging
Payment Terms: T/T
Supply Ability: 20000
Contact Now
Detailed Product Description
FTTH: Fast Connector

Feature



  • precise mechanical dimensions
  • low insertion loss, high return loss
  • comply standard of IEC61754-4
  • ROHS compliant



Application



  • Connections at the desk for LAN environments
  • Patch panels
  • Direct equipment termination
  • Fiber to the Subscriber (FTTH) applications
  • Repair/replacement requirements
  • Equipment test leads


Technical specification



Parameters Technical Parameters
Applicable for Drop cable / Indoor cable
  0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss > 50db(UPC), > 55db(APC)
Tensile strength ≥ 30N
Using temperature -45°C~+75°C
Matching Gell FIS USA
Working Life 10 Years
